Product Details
DESCRIPTION:

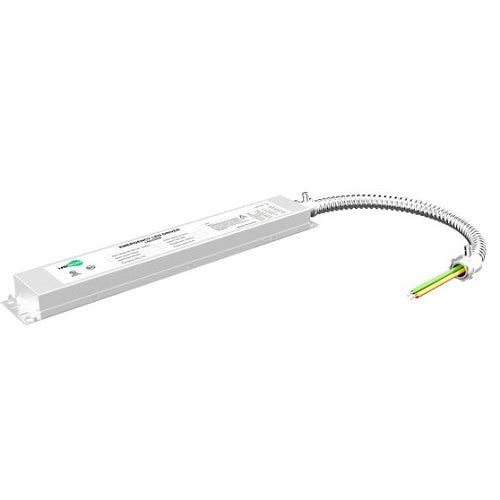

When AC supply power is lost in a power outage, the emergency driver switches on automatically to provide backup battery power directly to LED arrays at a rated output voltage of 170 VDC. The constant wattage power design maintains the output wattage even as the system voltage diminishes. The battery backup has a wide input voltage of 100-347 VAC. The internal lithium-ion battery provides backup light for a minimum of 90 minutes and has a 24-hour recharge time. The UL 924 listed certification and CEC Tile 20meets or exceeds specific safety and fire hazard codes required for commercial properties in the United States.
*** Compatible with Eco LED Mart's LED Flat Panel, LED Troffer, LED Linear High Bay***
INSTALLATION GUIDE:
Click Here: Emergency Battery Backup
PRODUCT SPECIFICATIONS:
- Backup Time: 90 Minutes
- Input Voltage Range: 100-347 VDC
- Output: 170 VDC
- Surge Protection: 3kV
- Compatible With: 1-10V Dimmable
- IP Rating: IP65
- Warranty: 5 Years
- SKU: QB:01032754052124
