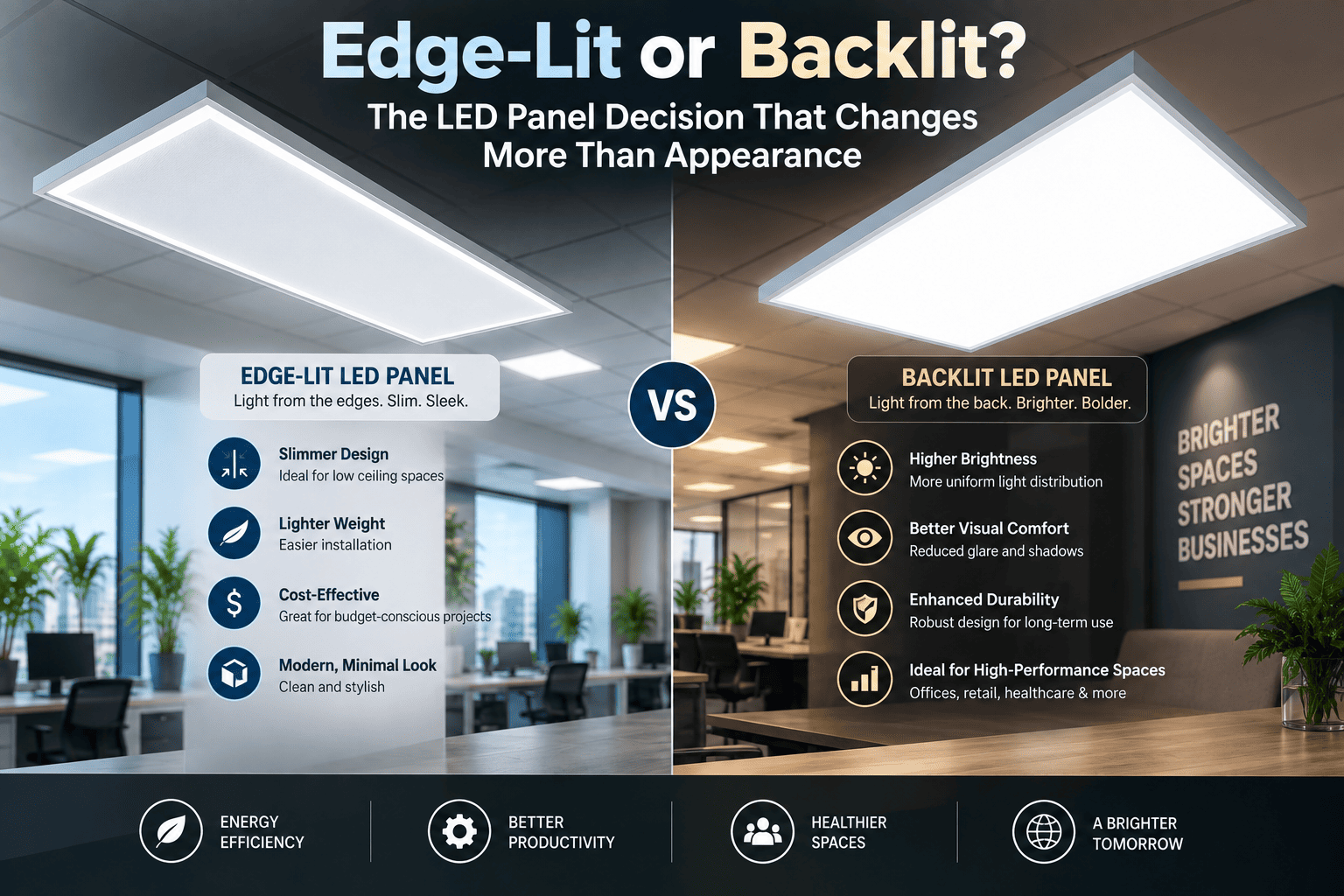

Edge-Lit or Backlit? The LED Panel Decision That Changes More Than Appearance

Anil Patyal
September 25, 2026

At first glance, choosing an LED panel light seems easy.

Find the right size.

Choose the desired brightness.

Pick a color temperature.

Check the price.

Order the fixtures.

But businesses planning a commercial lighting upgrade soon discover that LED panels involve far more decisions than simply choosing a fixture that fits into the ceiling grid.

One of the most important—and frequently overlooked—decisions is the panel's construction.

Should you choose an edge-lit LED panel or a backlit LED panel?

The difference may sound like a technical detail.

It isn't.

The way LEDs are positioned inside a panel can influence light distribution, visual appearance, fixture depth, thermal management, efficiency, glare, installation considerations, and long-term performance.

For businesses investing in dozens, hundreds, or even thousands of commercial LED panel lights, those differences deserve serious attention.

The good news is that both technologies can be excellent choices when properly designed and matched to the application.

The better question isn't simply:

“Which one is better?”

It is:

“Which LED panel design is better for our business, our space, and our lighting goals?”

That is where the real decision begins.

What Is an Edge-Lit LED Panel?

An edge-lit LED panel places LED light sources around the edges of the fixture.

Instead of positioning LEDs directly behind the entire face of the panel, the light is introduced from the perimeter and distributed across the panel through an optical light guide.

The result is a thin, sleek fixture that can produce broad and visually comfortable illumination.

This design became particularly popular in offices, schools, healthcare facilities, retail spaces, and other commercial environments where aesthetics and ceiling appearance matter.

Because the LEDs are positioned around the perimeter rather than directly behind the entire panel, edge-lit fixtures can often be designed with a slim profile.

That creates a clean appearance.

For businesses interested in modern LED ceiling panels, this can be a significant advantage.

A low-profile panel can blend naturally into a suspended ceiling while creating a more contemporary look than some older fluorescent fixtures.

What Is a Backlit LED Panel?

Backlit LED panels take a different approach.

Instead of placing LEDs primarily around the edges, backlit panels position the LED light sources behind the diffuser or lens.

The LEDs illuminate the panel directly from the rear.

This construction can provide a straightforward optical path and can allow manufacturers to design panels with different depths, LED arrangements, and optical configurations.

Backlit panels have become increasingly popular in commercial lighting because they can offer strong illumination, good uniformity, and efficient thermal and optical designs when properly engineered.

Like edge-lit panels, they can be used in offices, schools, commercial buildings, retail spaces, and many other indoor applications.

So if both technologies can provide quality illumination, why should businesses care about the difference?

Because the internal architecture of the fixture can influence how the light performs.

Edge-Lit vs. Backlit: The Real Difference

The easiest way to understand the difference is to imagine how the light travels.

With an edge-lit panel, the LEDs are located around the perimeter.

Light enters an optical guide and is distributed across the face of the fixture.

With a backlit panel, LEDs are positioned behind the diffuser.

Light travels forward from the rear toward the illuminated surface.

Neither approach automatically wins.

The performance depends heavily on the quality of the fixture's optical design, LED components, driver, diffuser, thermal management, and overall construction.

This is an important point for businesses shopping for LED panel lights for commercial buildings.

Don't judge the fixture only by whether it is edge-lit or backlit.

Judge the complete product.

Why Edge-Lit Panels Are So Popular

Edge-lit panels have several characteristics that make them attractive for commercial applications.

Slim Profile

One of the most obvious advantages is their thin construction.

A slim fixture can create a clean, minimalist appearance.

For modern offices, educational environments, and commercial interiors, that aesthetic can be appealing.

Broad Light Distribution

The optical light-guide system is designed to distribute light across the face of the panel.

When properly engineered, this can produce a smooth and consistent appearance.

Modern Appearance

Edge-lit panels often have a sleek, contemporary profile.

For businesses renovating older buildings, replacing fluorescent fixtures with modern edge-lit LED panels can significantly update the appearance of a ceiling.

Retrofit-Friendly Applications

In some environments, the thin design can be useful when working with existing ceiling configurations.

However, compatibility should always be confirmed before purchasing.

Why Businesses Are Considering Backlit Panels

Backlit panels offer a different set of potential advantages.

Direct Light Distribution

Because the LEDs are positioned behind the diffuser, the light doesn't need to travel from the edges across the entire panel in the same way as an edge-lit design.

This can allow manufacturers to create highly controlled optical systems.

Strong Uniformity

A properly designed backlit panel can provide excellent illumination across the face of the fixture.

The exact performance depends on LED spacing, diffuser quality, optical design, and other construction details.

Thermal Design

The physical arrangement of LEDs and other components can influence heat management.

Good thermal management is important because excessive heat can negatively affect LED performance and longevity.

Flexible Engineering

Backlit construction gives manufacturers considerable freedom when determining LED placement, optical geometry, and fixture depth.

That flexibility can be useful when developing panels for different performance requirements.

Is Edge-Lit More Energy Efficient?

This is where businesses need to be careful.

It is tempting to say that edge-lit panels are more efficient because they use one design, or that backlit panels are more efficient because they use another.

Neither statement is universally correct.

Efficiency depends on the complete fixture.

Two panels with the same dimensions can have different wattages, lumen outputs, efficacy, driver efficiencies, and optical losses.

A high-quality edge-lit panel may outperform a poorly designed backlit panel.

A high-quality backlit panel may outperform a poorly designed edge-lit panel.

That's why businesses should compare actual specifications rather than relying on construction type alone.

When shopping for energy-efficient LED panel lights, look at the relationship between power consumption and useful light output.

The objective is to find a fixture that provides the appropriate illumination efficiently.

Don't Confuse Brightness With Quality

A common mistake in commercial lighting is to focus entirely on lumen output.

More lumens sound better.

But more light isn't automatically better light.

A panel producing extremely high output may be inappropriate for a particular office or workspace.

It could create excessive brightness or uncomfortable glare.

Meanwhile, a lower-output fixture with excellent distribution and appropriate placement may create a much better environment.

Businesses should therefore consider:

Lumen output
Lumens per watt
Light distribution
Uniformity
Glare
Color temperature
Color rendering
Operating conditions
Controls compatibility

This is especially important when comparing edge-lit and backlit panels.

The architecture matters.

But performance matters more.

Glare Is a Major Commercial Lighting Consideration

Imagine sitting at a desk for eight hours.

Above you is a bright LED panel.

Every time you look upward, the fixture feels harsh.

You turn toward your computer.

There is a reflection on the screen.

You adjust your monitor.

You change your chair.

The problem isn't necessarily that the fixture is bad.

It may simply be the wrong fixture for the application.

This is why glare should be part of any commercial LED panel selection process.

The diffuser, lens, optical design, fixture brightness, mounting height, and viewing angles can all influence the visual experience.

For businesses searching for LED panels for office lighting, visual comfort should be treated as seriously as energy efficiency.

Uniformity Can Be More Important Than Maximum Output

A good commercial lighting system should create a visually consistent environment.

That means avoiding significant differences between bright and dark areas.

Both edge-lit and backlit panels can provide strong uniformity when properly engineered.

But businesses shouldn't assume that every panel will perform equally.

Ask for photometric information when appropriate.

Review the product's specifications.

Consider how the fixtures will be spaced.

Think about ceiling height.

Evaluate the layout of the room.

A high-quality panel is only one part of the lighting system.

The arrangement of fixtures matters too.

Color Temperature Changes the Atmosphere

Businesses should also think carefully about color temperature.

LED panels are available in different color temperatures, allowing organizations to create different visual environments.

A bright, cooler appearance may work well in certain workplaces.

A more neutral appearance may be preferable in general office environments.

A warmer appearance could suit certain customer-facing spaces.

There is no single perfect choice.

The right selection depends on the application, brand environment, employee needs, and desired atmosphere.

This is another reason businesses should avoid purchasing LED panels based solely on price.

A fixture needs to perform visually as well as electrically.

CRI Can Influence How Colors Look

Color Rendering Index, commonly called CRI, is another important consideration.

CRI provides an indication of how accurately a light source reveals colors compared with a reference source.

For many commercial applications, good color rendering is desirable.

In retail environments, accurate product colors can be important.

In offices, documents, materials, and interior finishes should appear natural.

In educational spaces, visual clarity matters.

The appropriate CRI depends on the application, but businesses should understand that LED panel selection involves more than wattage.

The LED Driver Matters More Than Most Buyers Realize

The LEDs themselves get most of the attention.

But the driver is an equally important component of the fixture.

The driver regulates electrical power supplied to the LEDs.

A quality driver can contribute to reliable performance, appropriate dimming behavior, and long-term operation.

When purchasing commercial LED ceiling panels, businesses should consider the driver's quality and compatibility with the intended controls.

This becomes especially important when a project includes dimming, occupancy sensors, building automation, or other smart lighting technologies.

The fixture needs to function properly as part of the larger system.

Edge-Lit Panels and Modern Office Design

Edge-lit LED panels can be particularly attractive for businesses pursuing a clean architectural appearance.

Their thin profile can complement minimalist ceilings.

They can also provide a visually smooth illuminated surface.

For companies modernizing an office, the transition from older fluorescent troffers to slim LED panels can make the ceiling look significantly cleaner.

But aesthetics should not drive the decision alone.

The panel still needs to deliver appropriate illumination, control glare, provide reliable performance, and match the electrical requirements of the building.

A beautiful fixture that creates uncomfortable lighting isn't a successful lighting upgrade.

Backlit Panels and Performance-Oriented Applications

Backlit panels can be appealing when businesses prioritize performance and robust optical engineering.

The rear-mounted LED configuration allows manufacturers to carefully control LED spacing and light distribution.

This can be useful when designing panels intended to produce consistent illumination across the entire face.

Again, the specific product matters.

A backlit label doesn't guarantee superior performance.

Businesses should examine actual specifications and application suitability.

Which One Is Better for Your Business?

There is no universal winner.

The better choice depends on what you need the lighting system to accomplish.

An edge-lit panel may be particularly attractive when:

A slim profile is important
Ceiling aesthetics are a priority
A clean architectural appearance is desired
The application requires broad, comfortable illumination
The existing ceiling configuration favors a thin fixture

A backlit panel may be attractive when:

Direct optical design is preferred
Uniform illumination is a major priority
Thermal design is important
The project prioritizes performance-focused construction
The fixture's specific optical system matches the application

But these are starting points—not universal rules.

Always evaluate the actual product.

Think About the Entire Lighting System

One fixture doesn't exist in isolation.

Its performance depends on the environment around it.

Consider ceiling height.

Room dimensions.

Fixture spacing.

Wall reflectance.

Natural daylight.

Work surfaces.

Occupancy.

Operating hours.

Controls.

All of these factors influence the final lighting environment.

This means a business can purchase an excellent LED panel and still achieve disappointing results if the fixtures are incorrectly spaced or specified.

The best commercial lighting projects begin with the space.

Then they select the technology.

Don't Forget About Other Commercial LED Applications

A business rarely needs just one type of lighting.

An office may use LED panels indoors and LED area lighting outdoors.

A retail property may use panels, downlights, signage lighting, and exterior fixtures.

A warehouse may combine high-bay LED fixtures with office panels.

A hospitality property may require several specialized lighting systems.

The broader lesson is that LED technology is application-specific.

For businesses working with specialized commercial environments, even seemingly small lighting details can matter. For example, businesses with refrigerated retail displays or commercial coolers may need purpose-built waterproof lighting rather than standard ceiling panels. Our guide to Best Waterproof LED Cooler Lights for Commercial Businesses explores that specialized side of commercial LED lighting.

The fixture should always match the environment.

Maintenance Should Be Part of the Buying Decision

Businesses often think about maintenance only after installation.

That is backwards.

Maintenance should be considered before purchasing.

Ask:

How accessible is the fixture?

What is the expected service life?

What happens if a driver fails?

Is the product covered by a meaningful warranty?

Are replacement components available?

How easy is it to source matching fixtures in the future?

This becomes particularly important for large commercial projects.

If a business installs 500 panels today, it may need replacement fixtures several years down the road.

Choosing a product with reliable support and consistent availability can make future maintenance easier.

Even indoor lighting systems benefit from preventive maintenance and periodic inspections. For businesses responsible for outdoor LED infrastructure as well, our resource on LED Street Light Maintenance Tips That Extend Fixture Life provides useful guidance on keeping exterior LED systems operating effectively.

What Should You Ask an LED Panel Supplier?

Before purchasing commercial LED panels, don't hesitate to ask detailed questions.

A reputable LED lighting supplier should be able to provide clear specifications.

Ask about:

Lumen Output

How much light does the fixture produce?

Wattage

How much electrical power does it consume?

Efficacy

How efficiently does it convert electricity into useful light?

Color Temperature

What options are available?

CRI

How accurately does it reproduce colors?

Glare

How is glare managed?

Driver

What driver is used, and is it compatible with the desired controls?

Dimming

Is the fixture dimmable?

Controls

Can it integrate with occupancy sensors or building automation?

Warranty

What coverage is provided?

Certifications

Does the fixture meet the relevant requirements for the intended application?

The more transparent the supplier is, the easier it becomes to make an informed decision.

Don't Choose Based on Price Alone

Commercial lighting is a long-term investment.

The cheapest LED panel isn't necessarily the most economical option.

A lower-priced fixture may have weaker components, less suitable optics, limited controls compatibility, or a shorter expected service life.

On the other hand, the most expensive fixture isn't automatically the best.

The goal is to find the best-value commercial LED panel for the application.

That means evaluating total cost of ownership.

Consider:

Purchase price + installation + energy + maintenance + replacement + operational value.

This is much more useful than comparing fixture prices alone.

What About Installation?

The choice between edge-lit and backlit can also influence installation considerations.

Both can be designed for common commercial ceiling systems, but compatibility varies by product.

Before purchasing, confirm:

Ceiling-grid dimensions
Fixture dimensions
Mounting method
Electrical configuration
Driver location
Emergency lighting requirements
Dimming requirements
Access requirements

A professional installation plan can prevent expensive surprises.

The goal is to make sure the selected panel works with the existing building infrastructure.

The Best LED Panel Is the One That Solves the Right Problem

This is perhaps the most important point of the entire discussion.

Businesses should not begin with:

“Should we buy edge-lit or backlit?”

They should begin with:

“What problem are we trying to solve?”

Maybe the existing fluorescent fixtures consume too much energy.

Maybe employees complain about glare.

Maybe the ceiling looks outdated.

Maybe maintenance is becoming expensive.

Maybe the business wants better color quality.

Maybe the property is undergoing renovation.

Maybe the company wants to introduce smart lighting controls.

Once the objective is clear, the right panel becomes much easier to identify.

Eco-Friendly LED Panels Make Sense for Modern Businesses

Regardless of whether a business ultimately chooses edge-lit or backlit technology, LED remains one of the most compelling options for modern commercial lighting.

Why?

Because businesses are no longer looking only for illumination.

They want efficiency.

They want flexibility.

They want control.

They want long-term value.

They want modern aesthetics.

They want sustainability.

They want lighting systems that can evolve with their buildings.

Eco-friendly LED panels can support these goals when selected and installed appropriately.

And when businesses take the time to compare fixture construction, optical performance, energy efficiency, controls, warranty, and total cost of ownership, they can make substantially better decisions.

The Future of LED Panel Lighting Is About Smarter Selection

The LED panel market will continue to evolve.

Fixtures will become more efficient.

Controls will become more intelligent.

Building automation will become more integrated.

Businesses will demand better performance from every watt consumed.

That means the simple “edge-lit vs. backlit” question will become only one part of a much larger conversation.

The real future of commercial lighting is about application-specific performance.

The right fixture.

The right optics.

The right output.

The right controls.

The right installation.

The right maintenance strategy.

When all of those pieces work together, the result can be a lighting system that provides significantly more value than a basic fixture replacement.

Look Beyond the Shape of the Panel

Edge-lit and backlit LED panels may look almost identical once they're installed in a ceiling.

But beneath that clean surface, their designs can be quite different.

Edge-lit panels use perimeter-mounted LEDs and optical light guides.

Backlit panels place LEDs behind the illuminated surface.

Both technologies can deliver excellent commercial lighting when properly engineered.

So the answer isn't to declare one universally better.

The answer is to choose based on the needs of the space.

Evaluate efficiency.

Evaluate illumination.

Evaluate uniformity.

Evaluate glare.

Evaluate color quality.

Evaluate driver performance.

Evaluate controls.

Evaluate installation.

Evaluate warranty.

And evaluate total cost of ownership.

Most importantly, don't let a familiar product category make the decision for you.

The fact that an LED panel fits a standard ceiling grid doesn't mean it automatically fits your business.

A lighting system should be designed around the people, property, and operations it serves.

That's the real advantage of modern LED technology.

It gives businesses more choices—and with those choices comes the opportunity to make smarter decisions.

So when you're standing between an edge-lit and a backlit panel, don't ask only:

“Which one looks better?”
